Needles and consumables

Injection needles

Injection needles

Ordering information

ø x L	Gauge x L inch	Packaging	Cat. No.
0.5 x 3 mm	25G x 1/8	12 / pk	371.0503
0.5 x 4 mm	25G x 1/6	12 / pk	371.0504
0.6 x 3 mm	23G x 1/8	12 / pk	371.0603
0.6 x 4 mm	23G x 1/6	12 / pk	371.0604
0.6 x 5 mm	23G x 1/5	12 / pk	371.0605
0.6 x 6 mm	23G x 1/4	12 / pk	371.0606
0.6 x 8 mm	23G x 5/16	12 / pk	371.0608
0.7 x 4 mm	22G x 1/6	12 / pk	371.0704
0.7 x 6 mm	22G x 1/4	12 / pk	371.0706
0.7 x 9 mm	22G x 3/8	12 / pk	371.0709
0.7 x 10 mm	22G x 3/8	12 / pk	371.0710
0.7 x 13 mm	22G x 1/2	12 / pk	371.0713
0.8 x 4 mm	21G x 1/6	12 / pk	371.0804
0.8 x 6 mm	21G x 1/4	12 / pk	371.0806
0.8 x 10 mm	21G x 3/8	12 / pk	371.0810
0.8 x 20 mm	21G x 3/4	12 / pk	371.0820
0.8 x 25 mm	21G x 1	12 / pk	371.0825
0.8 x 40 mm	21G x 1 1/2	12 / pk	371.0840
0.8 x 80 mm	21G x 3 1/4	12 / pk	371.0880
0.9 x 10 mm	20G x 3/8	12 / pk	371.0910
0.9 x 13 mm	20G x 1/2	12 / pk	371.0913
1.0 x 10 mm	19G x 3/8	12 / pk	371.1010
1.0 x 13 mm	19G x 1/2	12 / pk	371.1013
1.0 x 15 mm	19G x 5/8	12 / pk	371.1015
1.0 x 20 mm	19G x 3/4	12 / pk	371.1020
1.0 x 25 mm	19G x 1	12 / pk	371.1025
1.0 x 30 mm	19G x 1 1/4	12 / pk	371.1030
1.2 x 10 mm	18G x 3/8	12 / pk	371.1210
1.2 x 13 mm	18G x 1/2	12 / pk	371.1213
1.2 x 15 mm	18G x 5/8	12 / pk	371.1215
1.2 x 20 mm	18G x 3/4	12 / pk	371.1220
1.2 x 50 mm	18G x 2	12 / pk	371.1250
1.4 x 10 mm	17G x 3/8	12 / pk	371.1410
1.4 x 20 mm	17G x 3/4	12 / pk	371.1420
1.6 x 10 mm	16G x 3/8	12 / pk	371.1610
1.6 x 100 mm	16G x 4	12 / pk	371.16100
1.6 x 13 mm	16G x 1/2	12 / pk	371.1613
1.6 x 20 mm	16G x 3/4	12 / pk	371.1620
1.6 x 25 mm	16G x 1	12 / pk	371.1625
1.6 x 30 mm	16G x 1 1/4	12 / pk	371.1630
1.8 x 10 mm	15G x 3/8	12 / pk	371.1810
1.8 x 20 mm	15G x 3/4	12 / pk	371.1820
1.8 x 30 mm	15G x 1 1/4	12 / pk	371.1830
2.0 x 30 mm	14G x 1 1/4	12 / pk	371.2030
2.0 x 40 mm	14G x 1 1/2	12 / pk	371.2040
2.0 x 50 mm	14G x 2	12 / pk	371.2050

Performance information

Injection needles

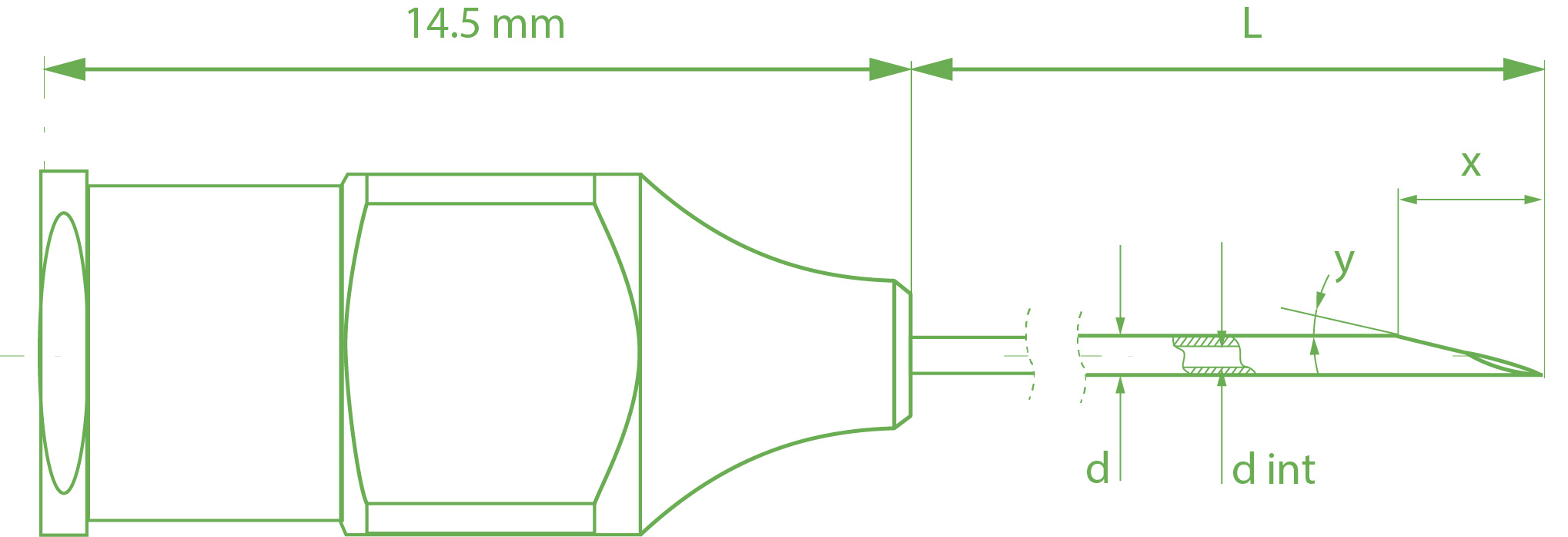

Dimension

Dimension injection needles

	Cat. No.	Diameter (mm) d	Length (mm) L	Internal diameter (mm) d int	Bevel Length (mm) x	Bevel angle (°) y
1	371.0503	0.5	3	0.25	2	12
2	371.0504	0.5	4	0.25	2	12
3	371.0603	0.6	3	0.35	2.4	12
4	371.0604	0.6	4	0.35	2.4	12
5	371.0605	0.6	5	0.35	2.4	12
6	371.0606	0.6	6	0.35	2.4	12
7	371.0615	0.6	15	0.35	2.4	12
8	371.0704	0.7	4	0.4	2.8	12
9	371.0706	0.7	6	0.4	2.8	12
10	371.0710	0.7	10	0.4	2.8	12
11	371.0806	0.8	6	0.5	3.2	12
12	371.0810	0.8	10	0.5	3.2	12
13	371.0825	0.8	25	0.5	3.2	12
14	371.0910	0.9	10	0.6	3.6	13
15	371.0913	0.9	13	0.6	3.6	13
16	371.1010	1	10	0.65	4	12
17	371.1013	1	13	0.65	4	12
18	371.1015	1	15	0.65	4	12
19	371.1020	1	20	0.65	4	12
20	371.1210	1.2	10	0.8	4.8	12
21	371.1220	1.2	20	0.8	4.8	12

Description

Swiss made quality Luer Lock needles intended for safe, precise animal injections. Sharp bevel and stainless steel material care for excellent durability.
