Electronic pipettes

Acura^® electro
956 electronic multichannel pipette

Acura^® electro 956 electronic multichannel micropipettes

Ordering information pipette alone

Volume	Channel	Division	Tip style	Cat. No.
0.5 - 10 µL	8	0.05 µL	Ultra 10 µL	956.08.010
2.5 - 50 µL	8	0.25 µL	200 µL	956.08.050
10 - 200 µL	8	1.0 µL	200 µL	956.08.200
20 - 350 µL	8	5.0 µL	350 µL	956.08.350
0.5 - 10 µL	12	0.05 µL	Ultra 10 µL	956.12.010
2.5 - 50 µL	12	0.25 µL	200 µL	956.12.050
10 - 200 µL	12	1.0 µL	200 µL	956.12.200
20 - 350µL	12	5.0 µL	350 µL	956.12.350
Acura^® electro 956 multichannel pipette alone supplied with sample of Qualitix^®pipette tips, silicone grease tube, individual QC certificate, operating instructions. Check also cost effective initial package.

Ordering Information packs

Acura^® electro 956 electronic multichannel micropipettes

Ordering information initial pack

Volume	Channel	Division	Tip style	Cat. No.*
0.5 - 10 µL	8	0.05 µL	Ultra 10 µL	956.08.010E
2.5 - 50 µL	8	0.25 µL	200 µL	956.08.050E
10 - 200 µL	8	1.0 µL	200 µL	956.08.200E
20 - 350 µL	8	5.0 µL	350 µL	956.08.350E
0.5 - 10 µL	12	0.05 µL	Ultra 10 µL	956.12.010E
2.5 - 50 µL	12	0.25 µL	200 µL	956.12.050E
10 - 200 µL	12	1.0 µL	200 µL	956.12.200E
20 - 350µL	12	5.0 µL	350 µL	956.12.350E
*Replace E by country codes if other plug types than Europe style are needed: G = UK, U = USA-Japan, A = Australia-NZ

Performance information

Acura^® electro 956 electronic multichannel pipettes

Performance information

Volume			Inaccuracy (E%)			Imprecision (CV%)
Range	Division	Channel	Min. vol.	Mid. vol.	Max. vol.	Min. vol.	Mid. vol.	Max. vol.
0.5 - 10 µL	0.05 µL	8/12	<± 3.5 % ^*	<± 1.5 %	<± 1.0 %	< 3.0% ^*	< 0.9 %	< 0.7 %
2.5 - 50 µL	0.25 µL	8/12	<± 1.0% ^*	<± 0.9 %	<± 0.8 %	< 1.0 % ^*	< 0.6 %	< 0.4 %
10 - 200 µL	1.0 µL	8/12	<± 0.9 %^*	<± 0.7 %	<± 0.6 %	< 0.6 % ^*	< 0.4 %	< 0.25 %
20 - 350 µL	5.0 µL	8/12	<± 1.0 % ^*	<± 0.8 %	<± 0.6 %	< 0.6 % ^*	< 0.4 %	< 0.25 %
Performance values obtained with bidest water at constant temperature (± 0.5°C) comprised between 20 and 25°C, in accordance with ISO 8655. Results can be improved by individual calibration in each mode. * measured at 10% of nominal volume

Pipetting Modes

Acura^® electro 956 electronic multichannel pipettes

Pipetting modes

Mode	Action	Suitable for
Forward	Aspiration and pipetting of set volume	All daily pipetting applications
Reverse	Aspiration in excess followed by dosing of set volume	Viscous, volatile and foaming liquids. Enhances reproducibility below 20 µL
Stepper	Tip filling and step-by-step distribution	Aliquot samples
Dilution	Aspiration of 2 or 3 different volumes for restitution in one shot	Dilution samples
Tactile	Monitoring of aspiration or distribution while touching activation button	Measurement of unknown volumes, gel loading or titration
Mixing	"Up and down" liquid flow in the tip / vial	Sample mixing in small tubes

Description

The electronic pipette includes a microprocessor-controlled motor and rechargeable battery pack. Four models with 8 and 12 channel cover the volume range 0.5 to 350 µL. Additional interchangeable volumetric modules available as accessories.

Large selection of 8- and 12-channel models
Light weight and perfect hand fitting
Sequential tip ejection
Also fit any single channel volumetric module

Model Selection

8- and 12-channel models:

0.5 - 10 µL
2.5 - 50 µL

10 - 200 µL
20 - 350 µL

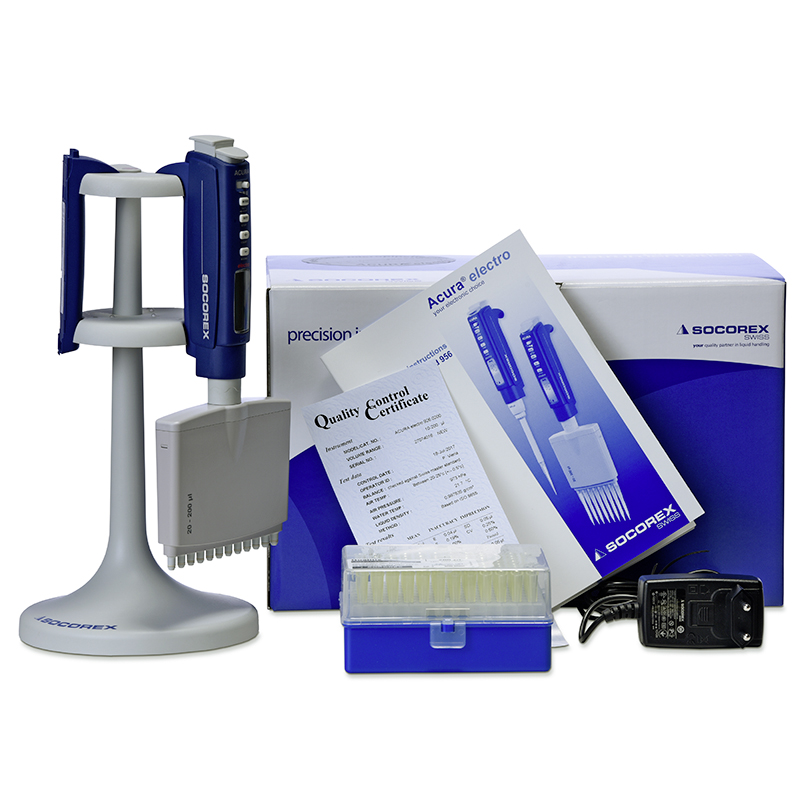

Initial Pack Selection

Recommended when purchasing an Acura^® electro for the first time, each initial package contains all components that allows immediate pipetting in optimal conditions. Thereafter, additional pipettes can be purchased alone and charged on existing stand.

Set includes:
1x      Acura^® electro 956 pipette
1x      Qualitix^® pipette tips samples
1x      QC certificate
1x      Operating instructions
1x Pipette charging stand
1x Fast charger with AC adapter and cord
1x Additional battery pack

0.5 - 10 µL
2.5 - 50 µL

10 - 200 µL
20 - 350 µL

Highlights

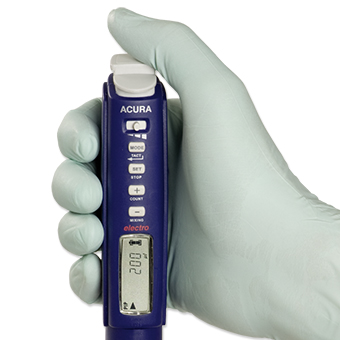

Natural ergonomics
Pipetting cycle counter

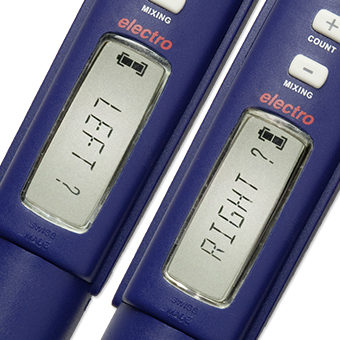

Unique "left or right" display reading

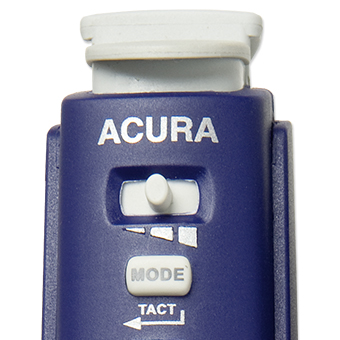

Variable speed

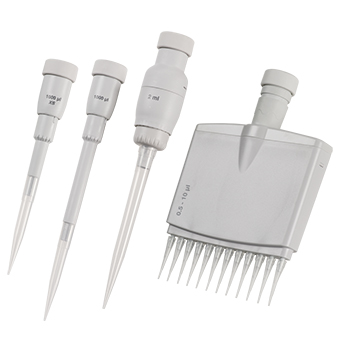

Interchangeable volumetric modules

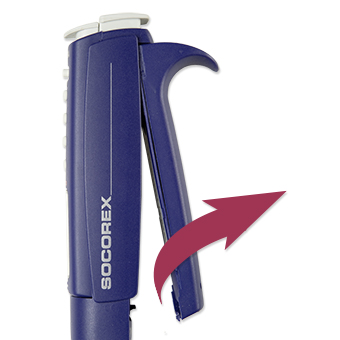

Long working autonomy

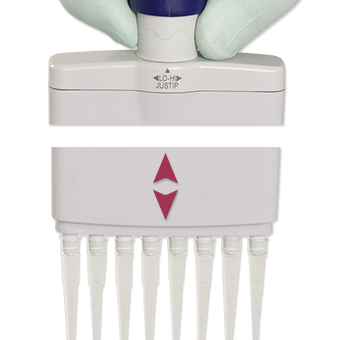

Adjustable tip ejection

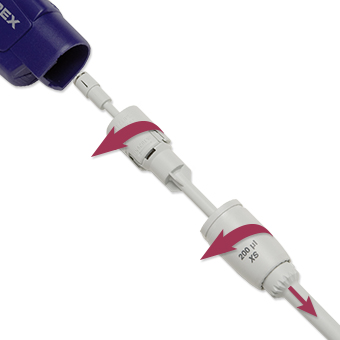

Time efficient maintenance

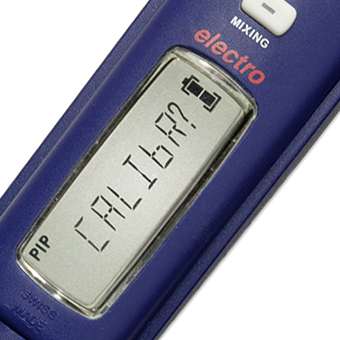

Calibration

Videos & Documents

General presentation

Tutorial

Acura^® electro 926XS/936/956

Catalog / Leaflet

Download

Acura^® electro

Operating Instruction

Download

Acura^® electro

Certificate

Download

Models

Accessories

Spare parts

Spare battery pack

Find your distributor

Find a distributor

Service & Calibration

Contact the Socorex Service & Calibration center for maintenance and calibration.

Learn more

Differentiating features	Acura^®electro 956 pipette alone	Acura^®electro 956 initial package
QC certificate and operating instructions	Yes	Yes
Battery pack	1X	2X
Charging stand	Not included	Included
Cable and plug	Not included	Included
Tip sample	Few tips in a bag	1X full rack
